HIFU transducers

Precision Acoustics supplies high power transducers for use in academia and industry.

Our standard range of HIFU transducers are available to buy direct through our secure online shop.

hifu transducer

Overview

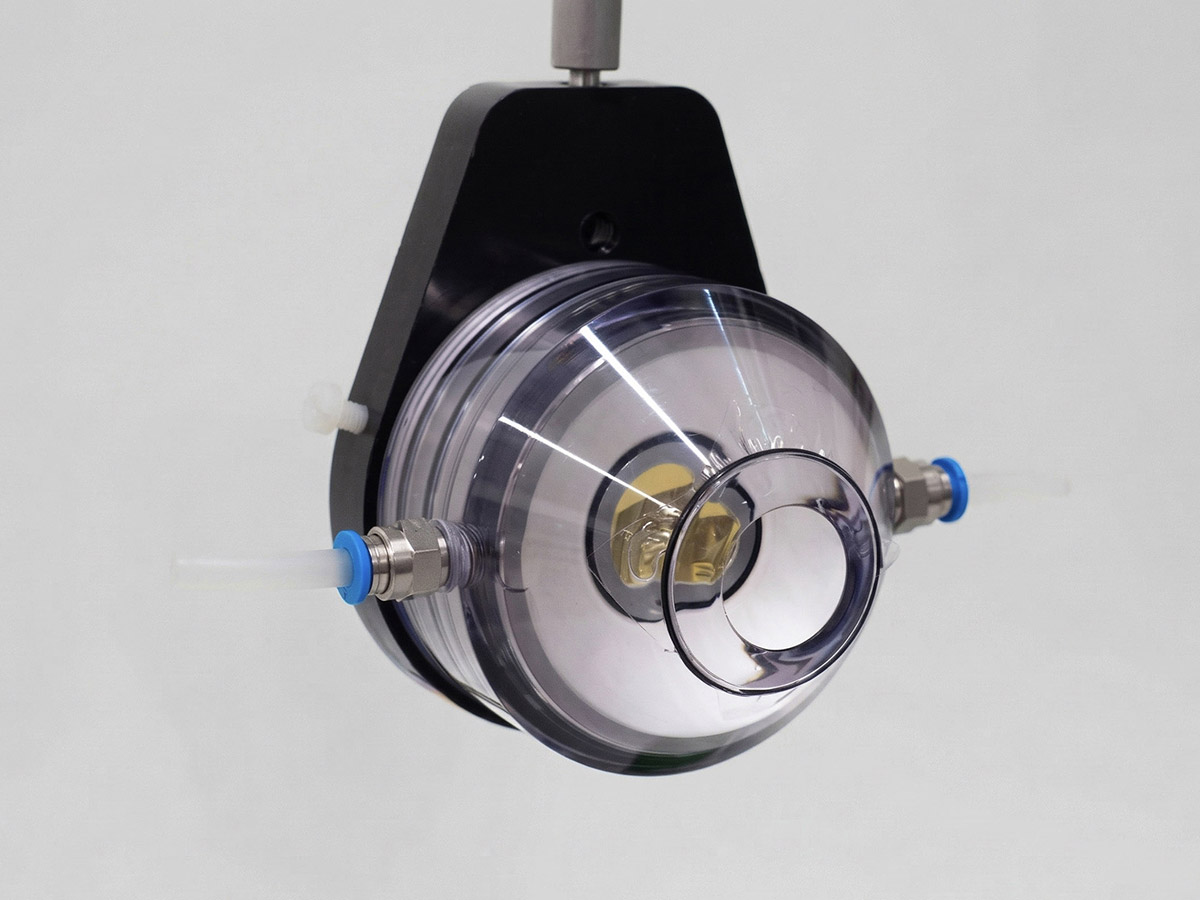

Our standard High Intensity Focussed Ultrasound (HIFU) transducers are available from 0.67 MHz to 5 MHz and can produce acoustic powers in excess of 100 W (depending on model). They are designed for immersion use or can be supplied with a coupling cone and membrane for contact use. Off-the-shelf models are a cost-effective and readily available solution that are ideal for research and development applications.

Download the data sheet

Frequency (MHz) Focal Intensity* (W/cm2) 6dB Focal diameter* (mm) Focal length (mm) Element diameter (mm)
0.66 600 4.3 75 60
1 1700 2.9 75 60
1.5 3000 1.2 48 60
2.5 3500 0.9 50 60
3.5 2000 1 35 23
5.0 20000 0.35 19 19

Our HIFU transducers are designed to operate with maximum efficiency over a narrow frequency band, allowing maximum acoustic power generation.

HIFU Transduce Chart

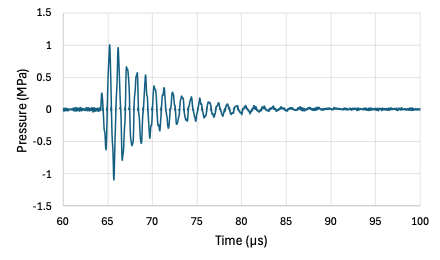

Figure 2. Single cycle Sinusoidal input response from a 1 MHz Precision Acoustics HIFU transducer TXH-1-75. Optimised for single frequency use.

Applications include:

  • Tissue ablation
  • Neurostimulation
  • Cavitation
  • Histotripsy
  • Theranostics, MR guided therapy
  • Sonodynamic therapy
  • Targeted drug delivery
  • Microbubble activation
  • Sonochemistry
  • Ultrasonic power transfer

MR compatibility

Talk to us about our MR compatible designs.

Pulsed applications

Precision Acoustics also offers broadband HIFU transducers that are specifically designed to operate with high efficiency over a broader range of frequencies than traditional HIFU transducers. These transducers are ideal for applications such as histotripsy or shockwave generation where short pulses or bursts are used. Precision Acoustics broadband HIFU transducers combine high efficiency integrated electrical impedance matching techniques with precision-machined sub wavelength mechanical impedance matching layers to achieve their high bandwidth without overly compromising the ability to produce short, broadband pulses with high acoustic pressures.

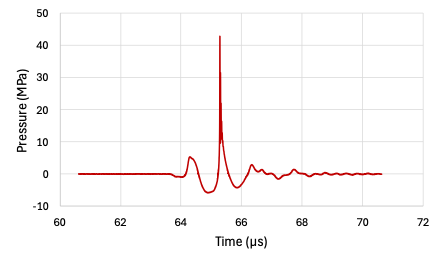

Figure 1. Single cycle Sinusoidal input response from a 1 MHz Precision Acoustics broadband HIFU transducer TXH-1-75-BB. Exhibiting non-linearity under high voltage drive conditions.
Figure 1. Single cycle Sinusoidal input response from a 1 MHz Precision Acoustics broadband HIFU transducer TXH-1-75-BB. Exhibiting non-linearity under high voltage drive conditions.

Custom HIFU Transducer Design & Manufacture

Our team of transducer engineers specialise in the design and manufacture of custom ultrasound transducers.

With over 100 years of combined design experience, the Precision Acoustics team is well placed to supply custom designed and built transducers optimised for your particular application.

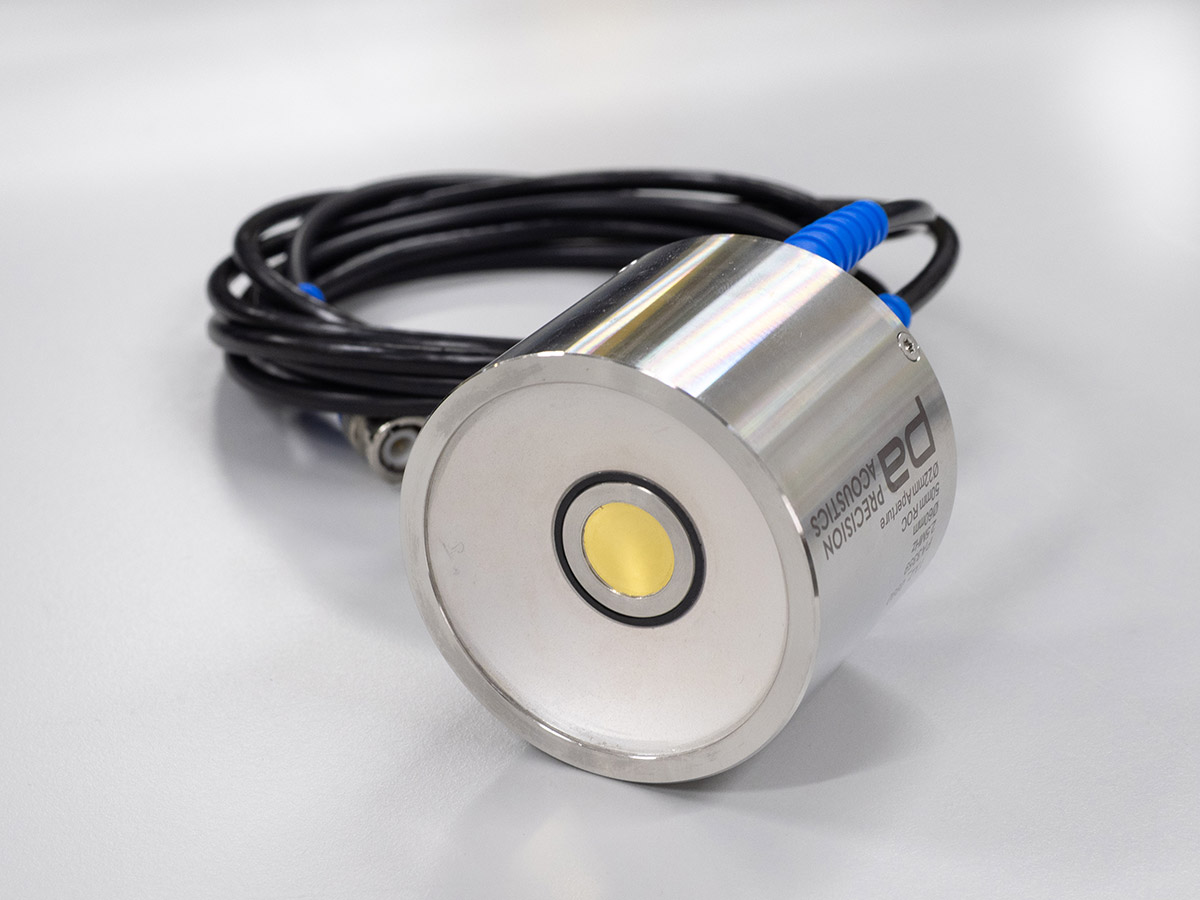

From single-element devices to multi-element transducers and arrays—whether a simple annular array, a pseudo-random distribution, or a complex multi-transducer setup—we can help.

Need a specific frequency, focal length, housing design, or a transducer built for a challenging operating environment? Our team of transducer engineers are available to discuss your requirements in detail.

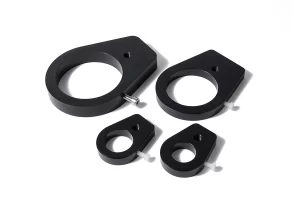

Accessories

Ultrasonic transducers FAQ's

Precision Acoustics manufactures transducers over the frequency range 0.2 MHz to 50MHz using a variety of different materials

  • PVDF transducers are available in the range 3 MHz to 50 MHz
  • Piezo-ceramic transducers are available in the range 0.5 MHz to 12 MHz
  • 1-3 piezo-composite transducers are available in the range 0.2 MHz to 1 MHz

To answer this question it is important to consider the type of signal that you wish the transducer to generate.

All piezo-electric transducers are resonant devices. The performance of a resonant device is significantly affected by how much damping is applied as can be seen in the graph below. The description that follows will consider the two extreme conditions of very low, and very high damping. However, Precision Acoustics is also able to produce transducers with damping anywhere between these two limits.

Resonance timedomain

An undamped (or resonant) transducer will produce a large output very close to its resonant frequency, but the amplitude of its response will decrease significantly away from the centre frequency. In contrast a highly damped transducer will produce a much lower output, but is capable of driving at a range of frequencies either side of the centre frequency.

It is common practice to describe this behaviour in terms of percentage bandwidth: the ratio of bandwidth and centre frequency. An undamped transducer will have a low percentage bandwidth, but high maximum output at resonance. Conversely a damped transducer will have a high percentage bandwidth, but with a lower maximum output.

Resonance freqdomain

It is also important to understand the effect that damping has on the time domain waveform produced by a transducer. A damped transducer will produce less acoustic output than a comparable resonant transducer, but it will have relatively short pulse duration. In contrast, an undamped transducer will produce a much larger output, but because it is a resonant device, the pulse will ring on for many cycles. It is this relationship between damping and resonance that means it is not possible to produce a high power output across a broad range of frequencies.

A summary of properties of the resonant and undamped transducers can be found in the table below:

 ResonantDamped
Percentage bandwidthLowHigh
Amplitude at centre frequencyHighMedium
Amplitude away from centre frequencyLowMedium/Low
Time domain impulse response>8 cycles2-3 cycles
Common drive signalsContinuous Wave or ToneburstSwept sine wave (chirps) or pulses
Common applicationsPhysiotherapy, HIFU, ultrasonic heating, ultrasonic cleaningPulse/Echo, NDT, diagnostic imaging, Time of Flight measurements

Piezo-ceramic materials are characterised by having good electrical to mechanical conversion capabilities, but relatively low internal damping. This makes them very good for producing resonant transducers, but they have to be damped heavily to produce broadband transducers. A typical heavily damped piezo-ceramic transducer will probably have a pulse that is 4-5 cycles long. They make excellent transmitting transducers and a reasonable choice for transmit/receive devices

Almost all piezo-ceramic transducers are supplied with an integral quarter wave matching layer to effectively couple the high characteristic acoustic impedance of piezo-ceramics (typically in excess of 30 MRayls) into the 1.5 MRayls load that is presented by water. Most Precision Acoustics piezo-ceramic transducers contain an integral electrical impedance matching network. This transforms the complex impedance presented by the transducer to something much closer to 50 Ω. This ensures optimum power transfer into the transducer from typical 50 Ω output impedance function generators and amplifiers.

Very high frequency devices are difficult to produce with piezo-ceramics because the crystals become very thin and prone to damage. Precision Acoustics normally only produces piezo-ceramic devices with centre frequencies of 10 MHz and lower. Piezo-ceramics have also been used in-house to produce highly resonant transducers with acoustic outputs in excess of 85W.

Piezo-polymer materials (e.g. PVdF) are characterised by having good mechanical to electrical conversion capabilities, but relatively high internal damping. This makes them very good for producing very short pulse, broadband transducers and impulse responses of-2-3 cycles are possible. However, the internal damping means that they have to be driven by much higher voltage levels than comparable piezo-ceramic devices. They make excellent receiving transducers and a reasonable choice for transmit/receive devices (particularly if good axial resolution is required).

The acoustic impedance of PVdF is very much closer to water than piezo-ceramics, and as such acoustic matching layers are not needed for PVdF based transducers. The nature of the electrical impedance presented by a PVdF transducer means that it is difficult to effectively transform it to 50 Ω. Although the impedance could be matched over a limited frequency range, this would compromise the broadband behaviour of this type of device. Therefore, most Precision Acoustics piezo-polymer transducers are supplied with simple inductive matching (to cancel much of the reactance of the transducer), but are not matched to 50 Ω.

PVdF films can be very thin indeed and therefore can be used to produce high frequency transducers. Miniature piezo-polymer transducers (1mm diameter) have been produced at Precision Acoustics with centre frequencies in excess of 35 MHz.
