DC Coupler

Provides dc power to the Submersible Preamplifier whilst at the same time acting as an acoustic signal coupler between the preamplifier and the user’s measurement system (via a Hydrophone Booster Amplifier, if used).

If you have any specific questions about this product, please contact us.

Overview

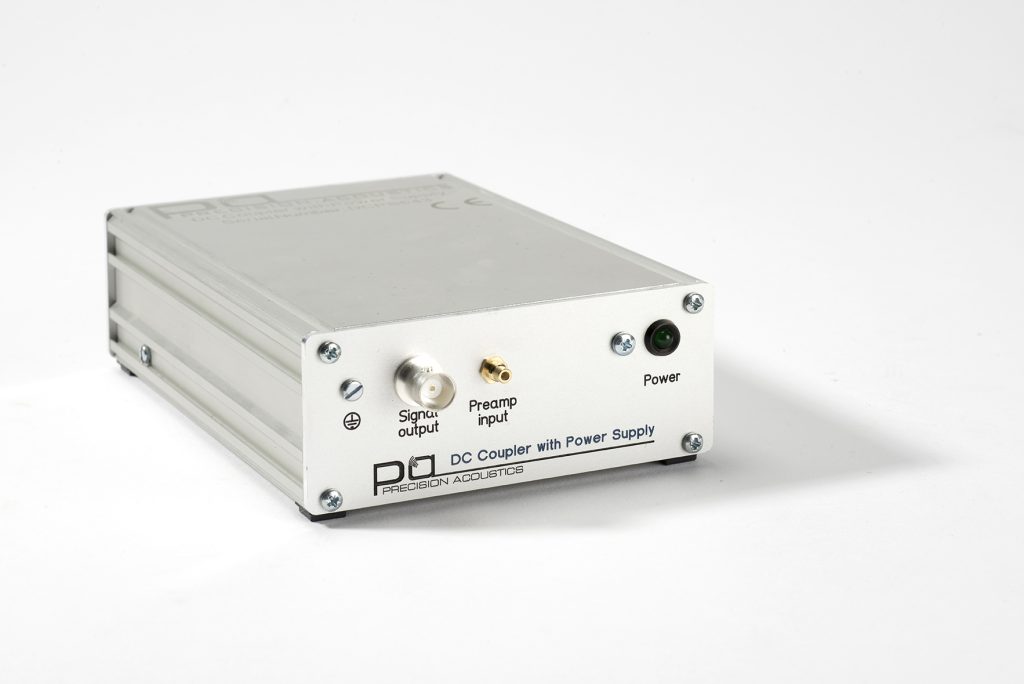

DC coupler with integral power supply

The DC Coupler can be used with either 110 or 230 V and a mains lead suitable for customer’s electrical system will be supplied.

Download the data sheet

Technical Specifications

RF Input Impedance: 50 Ohms
RF Output Impedance: 50 Ohms
Input Power Supply Requirements: 110 or 230 V mains supply. The DCPS has an output of 28 V to operate the preamplifier. The DCPSU is supplied with a mains lead suitable for the destination country
Terminations: Input – SMC Jack
Output – BNC Jack
Weight: 1 kg

* Precision Acoustics reserves the right to change the specification without notice.

Hydrophone FAQ's

A simple guide can be found here “Simple Guide to making ultrasonic intensity measurements” or if you are in the UK you might be interested in our “Hydrophone users course” in the education section
Hydrophones can be used in castor oil or mineral oil. The hydrophone is constructed from PVDF which although resilient can be damaged by some chemicals. Consult our web page Properties of poled piezo-electric PVDF film.

All hydrophones should be soaked before use. Although most hydrophones stabilise after about 10 minutes, our recommendation is to soak for 1 hour so that the output stabilises before measurements are taken.


Hydrophones should be removed from the water as soon as possible and we advise that if they are left immersed longer than 24 hours they are removed as soon as possible and dried out.

If possible rinse the hydrophone tip in distilled water at the end of a measurement session and leave to air dry or place in a warm oven at no more than 50 °C. Do not touch the hydrophone tip.

Immerse the hydrophone tip in lemon juice and then rinse in distilled or running water.

The input and output from your measurement equipment should be terminated with 50 Ohms.

It doesn’t matter whether you measure it as a power or voltage ratio – you’ll get the same dB result.

Three 9v batteries in series will give enough voltage but they will not last very long and may cause changes in the measured signal. All DC Couplers supplied after March 2008 are supplied with a small desktop power supply suitable for use with the hydrophone system. Contact us if you wish to purchase a PSU for use with older systems.

No – it simply powers the preamp and removes the dc component from the returned signal.

Yes, you can feed a test signal in and measure the response. You will need to use a 50 Ohm terminator at the input if you use a 50 Ohm signal source. You will also need to use 50 Ohm input on your oscilloscope.

Precision Acoustics manufactures transducers over the frequency range 0.2 MHz to 50MHz using a variety of different materials

  • PVDF transducers are available in the range 3 MHz to 50 MHz
  • Piezo-ceramic transducers are available in the range 0.5 MHz to 12 MHz
  • 1-3 piezo-composite transducers are available in the range 0.2 MHz to 1 MHz

The sensitivity is simply a conversion factor between pressure and voltage. If you measure peak-to-peak voltage and apply the conversion factor, you will measure peak-to-peak pressure. If you measure rms voltage and apply the conversion factor, you will measure rms pressure. The same will be true for peak positive, peak negative, etc.
