PowerDrive Multi-channel drive systems
Modular platform enabling between 4 and 32 channels of waveform synthesis and amplification targeted at high power applications.
Overview
The Precision Acoustics PowerDrive system is a modular platform enabling between 4 and 32 channels of waveform synthesis and amplification targeted at high power applications, which is scalable and configurable with up to 8 stacked units utilising a rack mountable design to provide scalable performance to suit different needs.
With up to 20 W electrical power per channel available for indefinite continuous wave (CW), pulsed, or arbitrary waveform capability, the driver offers a robust solution for use with high-power transducers and arrays.
All channels are individually controllable via PC and synchronised for accurate phase control to < 0.03 λ precision over the whole 250 kHz to 20 MHz bandwidth, allowing use as a phased array controller for beam steering and focusing.
Download the data sheet
Product
The Precision Acoustics PowerDrive System provides a modular approach to controlling high-power transducer arrays.
Supplied as a 32-channel control system linked to individual blocks of 4-channel signal synthesis and amplification, the driver can be configured in 4, 8, 12… 32-channel options for the ultimate choice in modularity.
Capable of supplying a continuous or pulsed sinusoidal drive or an arbitrary waveform input, the multi-channel driver is software-controlled. Once connected to a PC, waveform and timing commands can be sent through the Array-Drive software supplied.
High-frequency digital clock signals from the control box allow precise timing and synchronization of the waveforms supplied to each channel, allowing signal phase to be accurately controlled to within fractions of a wavelength. [Figure 3]
With integrated thermal overload protection and all channels rated for simultaneous and continuous use at maximum power, the phased array driver is one of the most robust systems on the market for user-configurable multi-channel transducer driving and control.
Combining its modular approach and robust construction, the Precision Acoustics PowerDrive System is the ideal choice where flexibility and versatility are key for both research and development applications and for industrial users targeting reliability in a demanding environment
Benefits & Features
- 4-32 Channels
- Wideband 250 kHz to 20 Mz
- Up to 20W per Channel
- CW, Pulsed or Arbitrary Waveform
- Modular and Scalable
- High Fidelity Class AB Amplifiers
- 50 Ohm Output Impedance
- <0.03 λ Delay Resolution
- Robust and Reliable
- Integrated Thermal Protection
- ArrayDrive Software with Programmable Delay Laws
- Trigger Output for Hydrophone Measurement
- 19” Rack Mountable
- Will Survive Capacitive, Open or Short Circuit Loads
Applications
- HIFU Transducers
- Industrial Ultrasound
- Phased Arrays
- Sonochemistry
- Research and Development
- Cavitation Experiments
User Interface

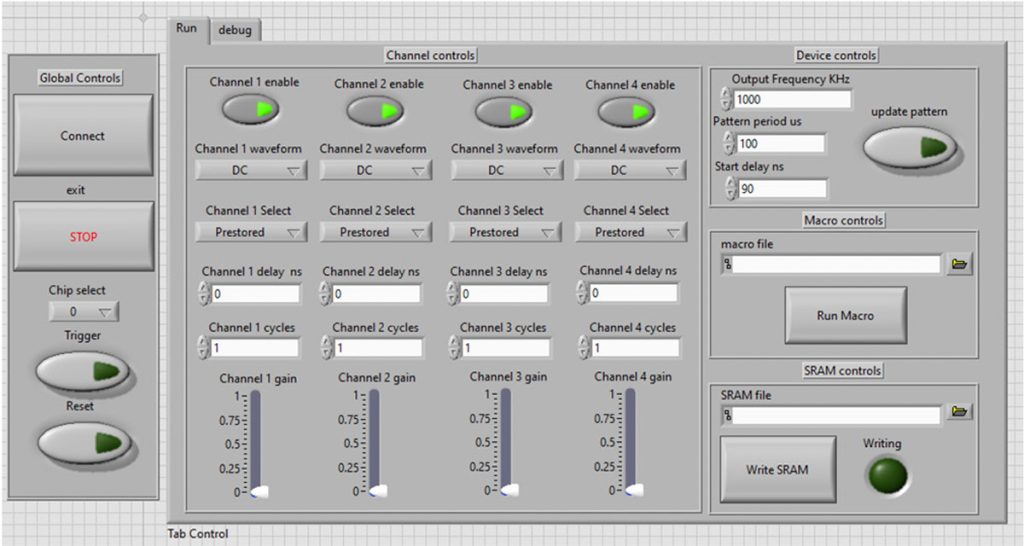

Channel module user interface. (Note: software under development and likely to change)
Timing and Phase Shift Specification

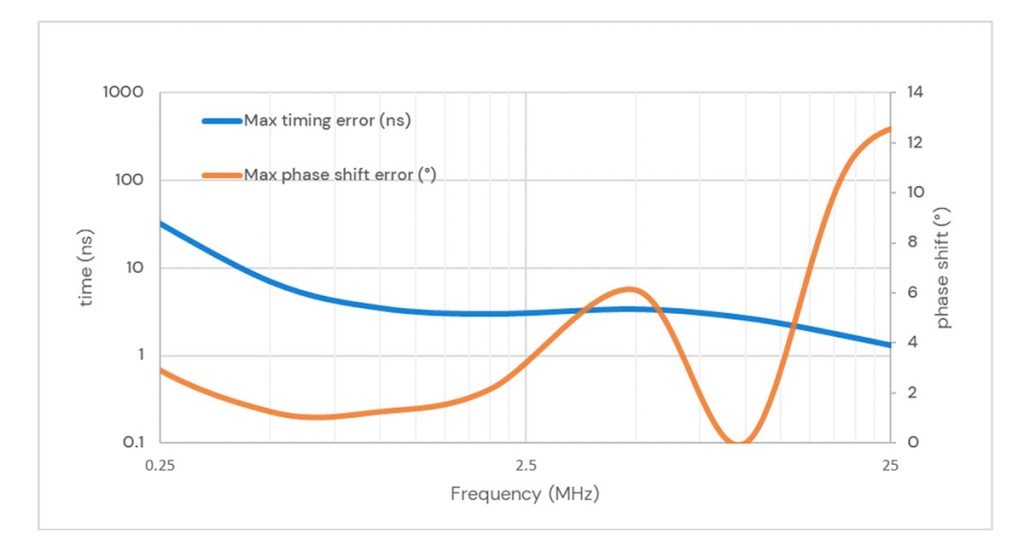

Timing and phase shift uncertainties over the frequency band 0.25 to 25 MHz, as measured from a 4-channel drive and control unit
Physical Properties (Single 4-Channel Drive Unit)
| Property | Value |
|---|---|
| Dimensions |
19” Rack Mounted, 3U enclosure (drive module) 19” Rack Mounted, 1U enclosure (control module) |
| Weight | 8.5 kg (drive module) 3 kg (control module) |
| Voltage | 110/240 Vac |
| Power Draw | 300 W (max. typical) (drive module) 10 W (max. typical) (control module) |
| Fuse | 4 A – 240 V, 10 A – 110 V (drive module) |
PC Requirements
| Property | Value |
|---|---|
| Processor | 1 GHz 64-bit (x64) or higher (1.5 GHz 64-bit (x64) recommended) |
| RAM | 2 GB (8 GB or higher recommended) |
| Disk Space | 10 GB (20 GB or higher recommended) |
| Screen Resolution | 1024 x 768 Pixels (1366 x 768 or higher recommended) |
| .NET Framework | .NET Framework 4.6.2 or later |
| USB | 2.0 or later |
All information is based on results gained from experience and tests and is believed to be accurate but is given without acceptance of liability for loss or damage attributable to reliance thereon as conditions of use lay outside the control of Precision Acoustics Ltd.
