Low frequency hydrophone

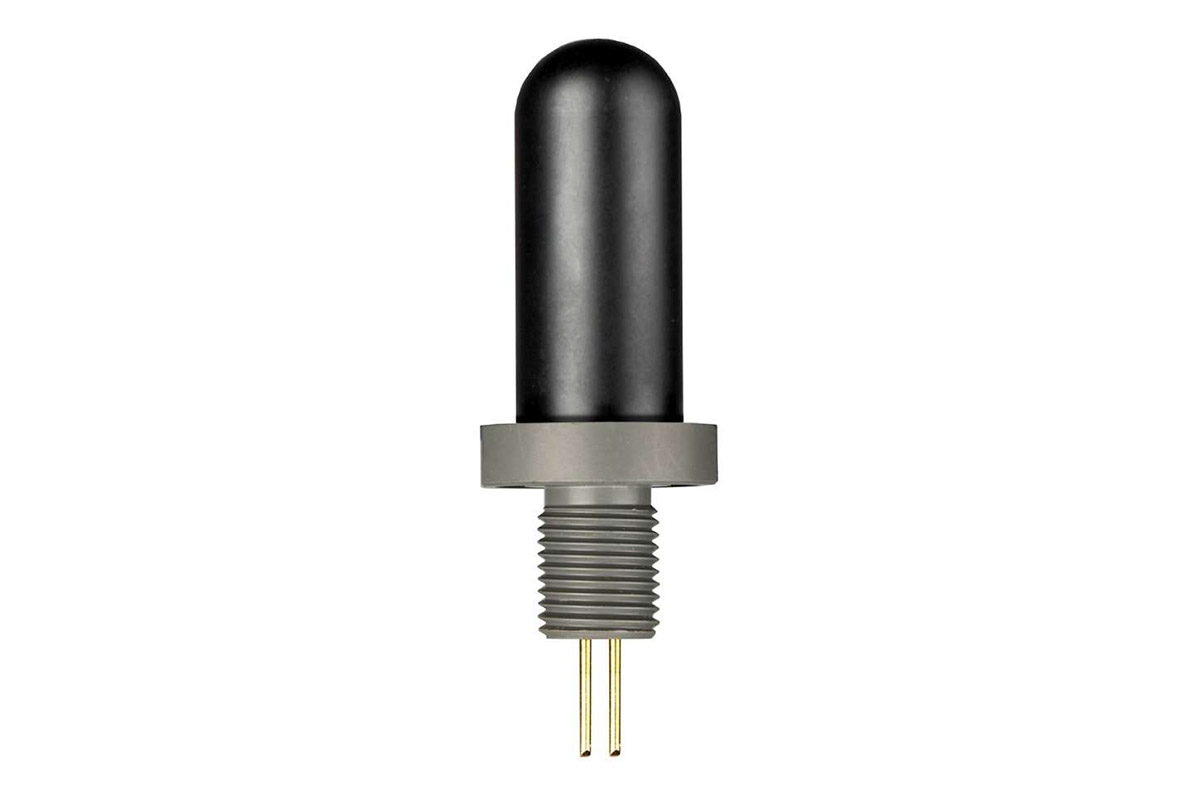

The UWC001 Low frequency Hydrophone is a robust single element hydrophone designed for immersion use in the frequency range 1-15 kHz.
If you have any specific questions about this product, please contact us.
Overview
The UWC001 Low frequency Hydrophone is a robust single element hydrophone designed for immersion use in the frequency range 1-15 kHz.
With a simple 2-pin arrangement for connection to circuitry and a threaded section and o-ring flange for bulkhead mounting the UWC001 hydrophone can easily be fitted to equipment in the lab and in the field.
Applications Include:
- Leak detection
- Underwater noise monitoring
- Cetacean monitoring
- Underwater communication
Download the data sheet
Technical specifications
| Typical receive sensitivity | -205 dB (re 1V/µPa) |
| Probe capacitance | 15 nF (@1kHz) |
| Directivity variation | <2dB (360˚ circumferentially) |
| Directivity variation | 3dB (180˚ vertical axis) |
| Weight | 20g |
| Height | 62mm (excluding electrode pins) |
| Diameter | 17.4mm (excluding flange) |
* Precision Acoustics reserves the right to change the specification without notice.
