Cavitation Monitor
Complete solution for monitoring cavitation incorporating acquisition and analysis for instant detection, visualisation and monitoring of both inertial and non-inertial cavitation.
Overview

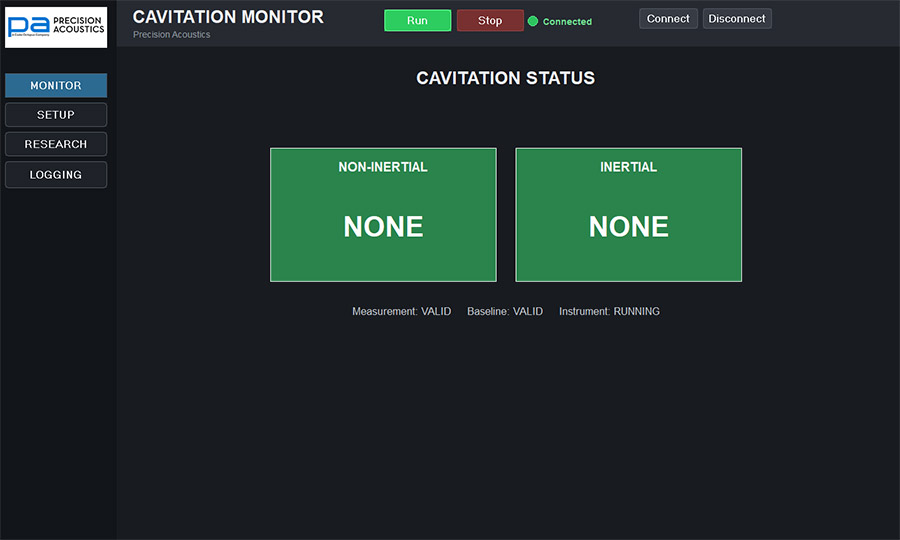

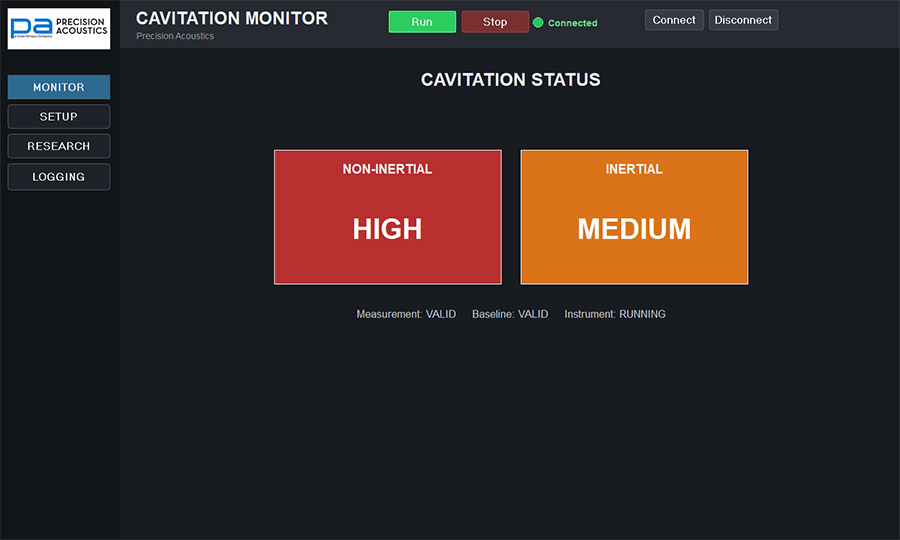

The complete, ready-to-use cavitation monitoring solution designed for industrial monitoring and research applications. Comprising a robust and compact control box with a range of interchangeable sensors, the Precision Acoustics cavitation monitor can be used to monitor and log cavitation in a variety of situations. A user-interface with highly visible red/green cavitation indicators for industrial monitoring combined with a status logging function allows for easy remote monitoring whilst the research mode with analysis of harmonic bands and spectral amplitude over the 20kHz to 20 MHz range provides real-time insight into the nature of the cavitation.
Download the data sheet
Key features
- Easy to use interface with operator and researcher modes
- Automatic logging of cavitation status to file
- Provides an assessment of inertial and non-inertial cavitation levels*

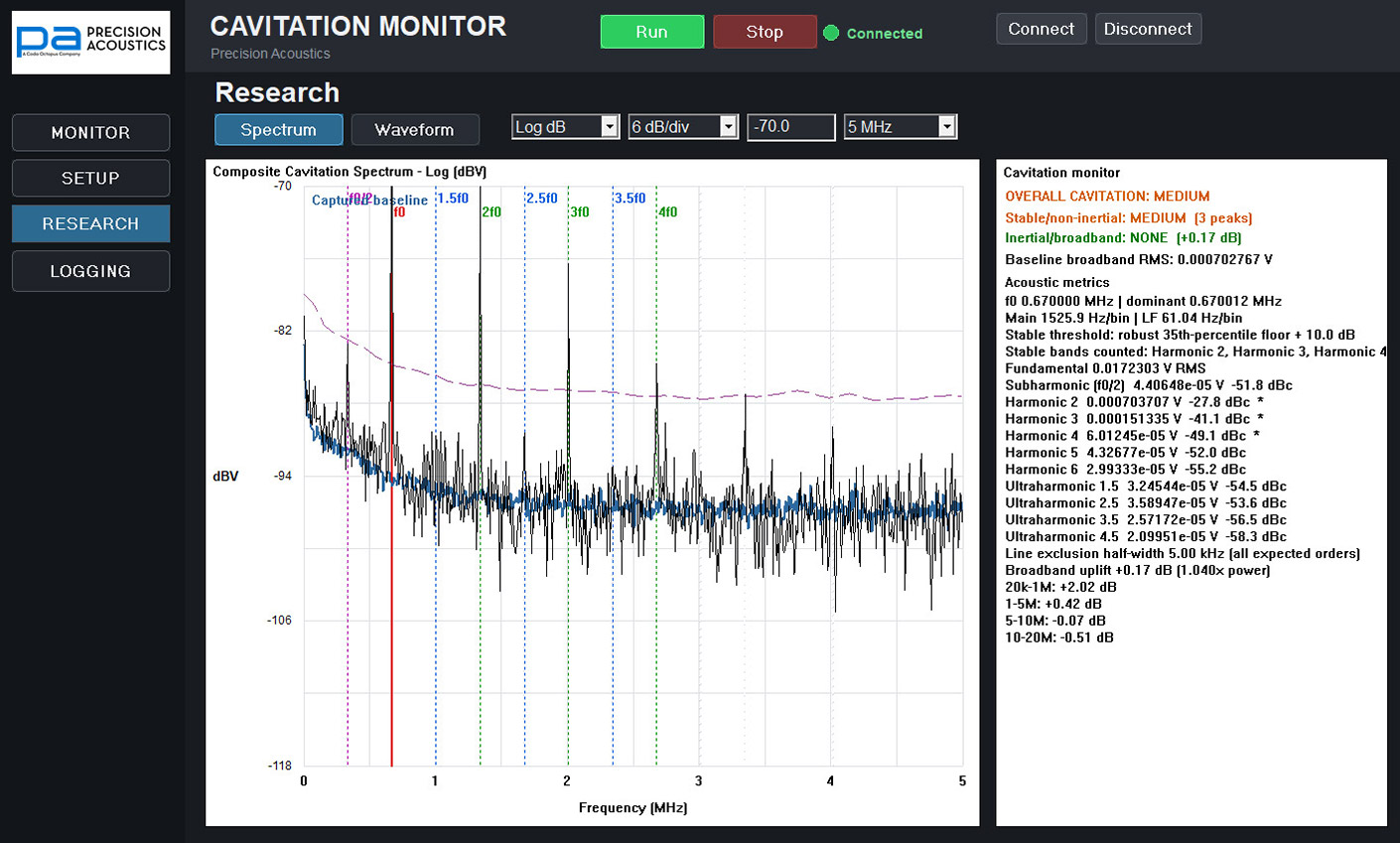

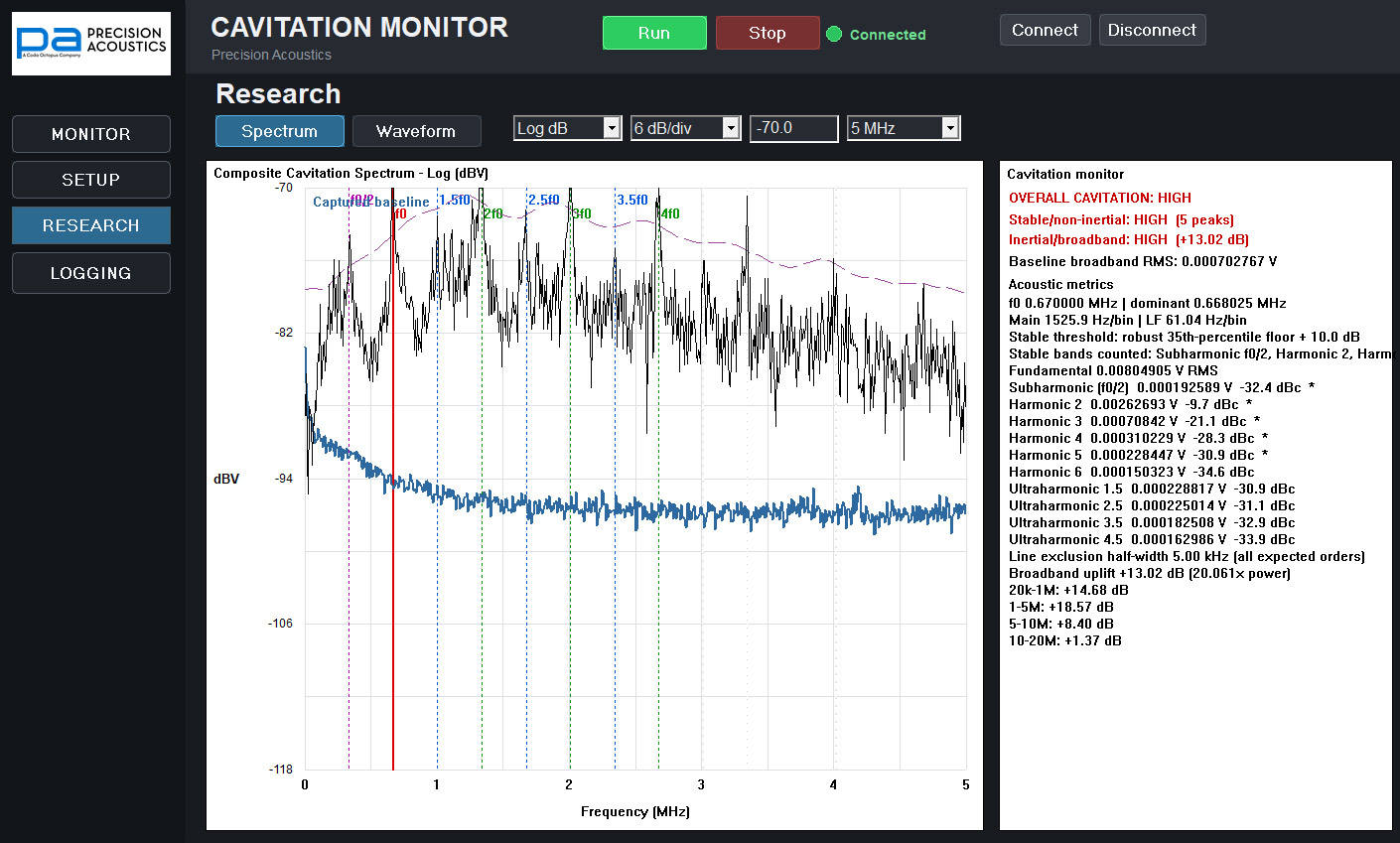

- Spectral viewer for cavitation analysis
- Harmonic, sub-harmonic and ultra-harmonic analysis for non-inertial cavitation fields
- Compatible with a wide range of Precision Acoustics sensors and hydrophones**
Applications
- Industrial monitoring – pumps, impellers, fluid systems
- Marine noise monitoring – vessel noise, marine biology
- Infrastructure protection – Data centers, cooling systems
- Scientific research – Ultrasonics, fluid dynamics, hydrodynamic optimization

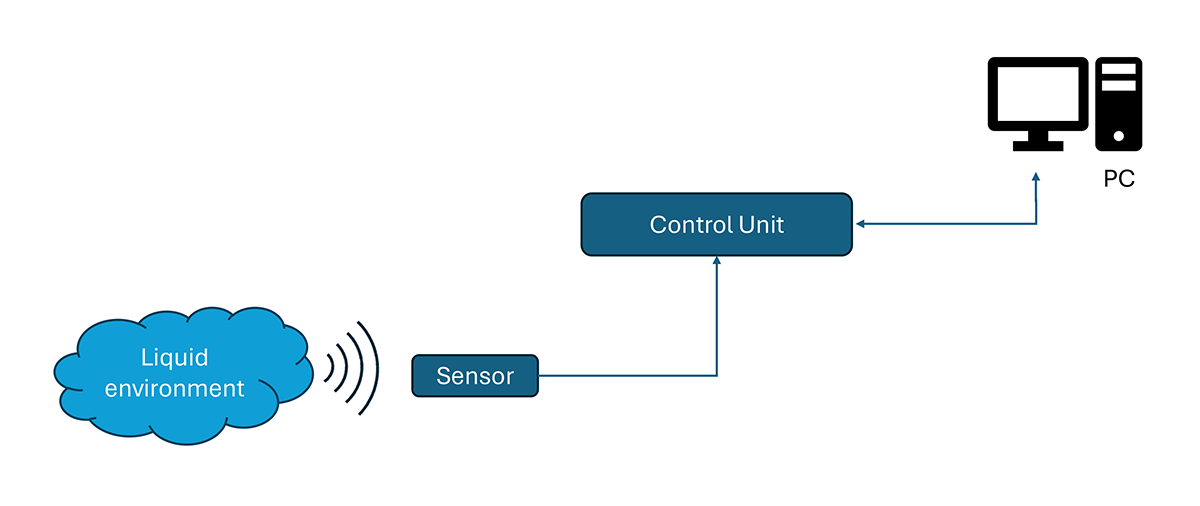

Architecture
Interface
Specifications
- Size – 235x170x55 mm (LxWxD)
- Weight – 1.2 kg
- Matetials – Aluminium instrument enclosure, zinc plated steel screws
- PC connection USB C
- Sensor connection – BNC socket
- Environmental – For indoor use only
PC requirements
- Operating system – Windows 10 or Windows 11, 64-bit
- Processor – 2 GHz or faster
- Memory – 8 GB RAM minimum
- Storage – 1 GB free disk space
- Display – 1920 × 1080 resolution recommended at 100% scaling
- USB – One available USB 3.0 port
- Architecture – x64 (64-bit) processor and operating system
* The built-in cavitation assessment is intended as a guide and should not be considered as a definitive analysis. It is possible to configure the analysis such that cavitation is reported when none is present or vice versa. The cavitation monitor is not a substitute for routine inspection and maintenance.
** Contact us for advice on choosing an optimal sensor, or to discuss our design service for incorporating a sensor directly into your setup/installation.
